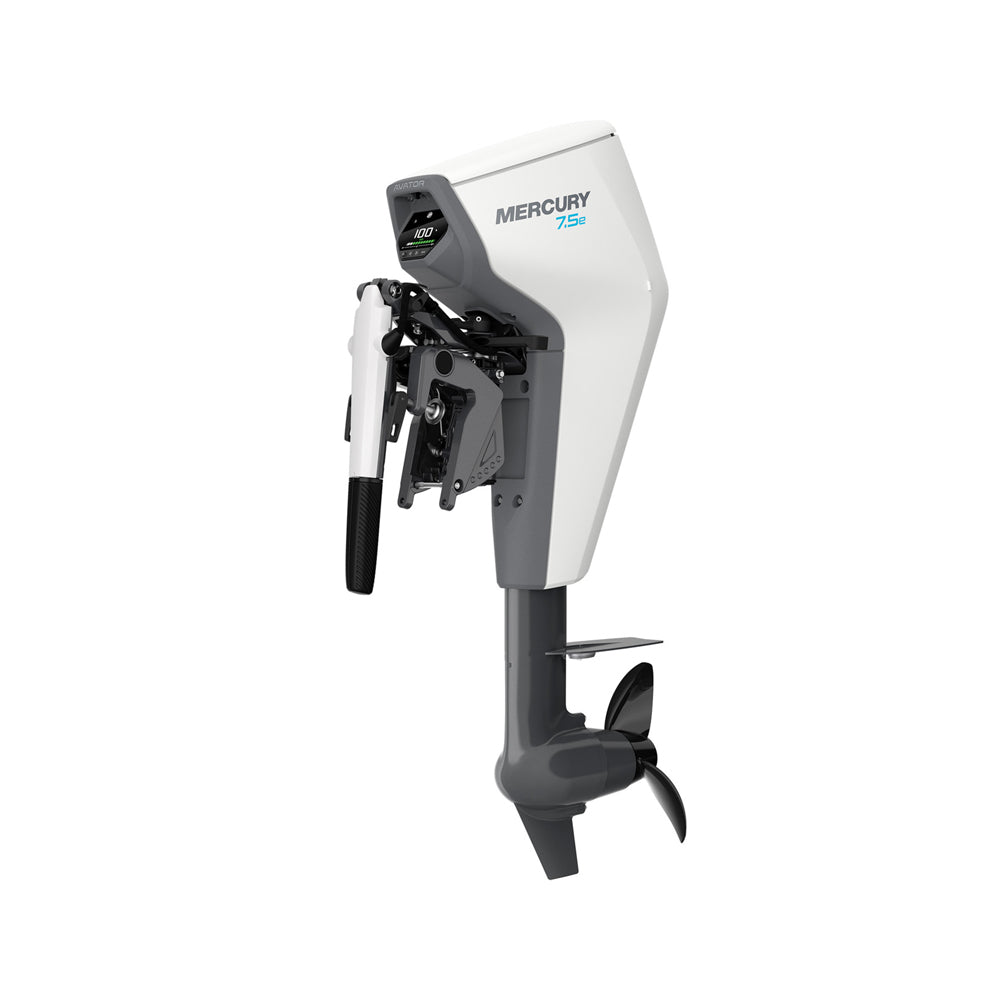

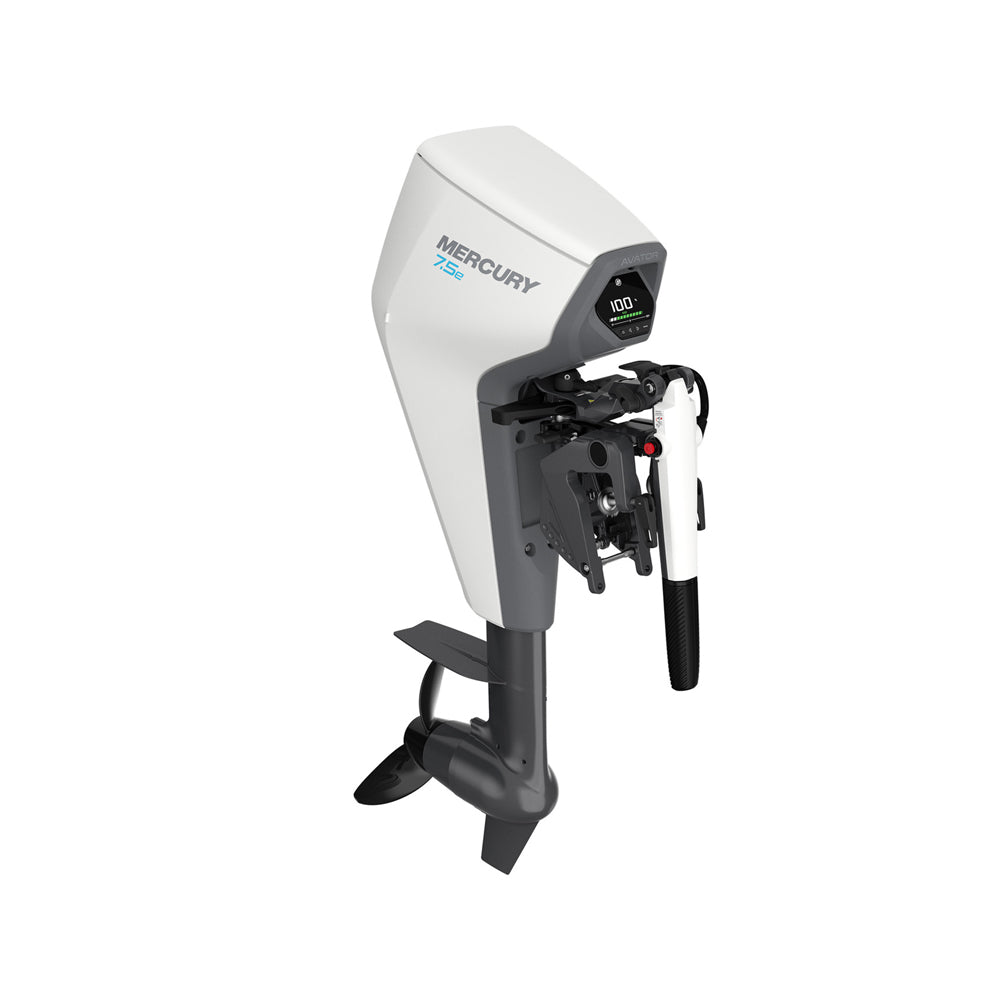

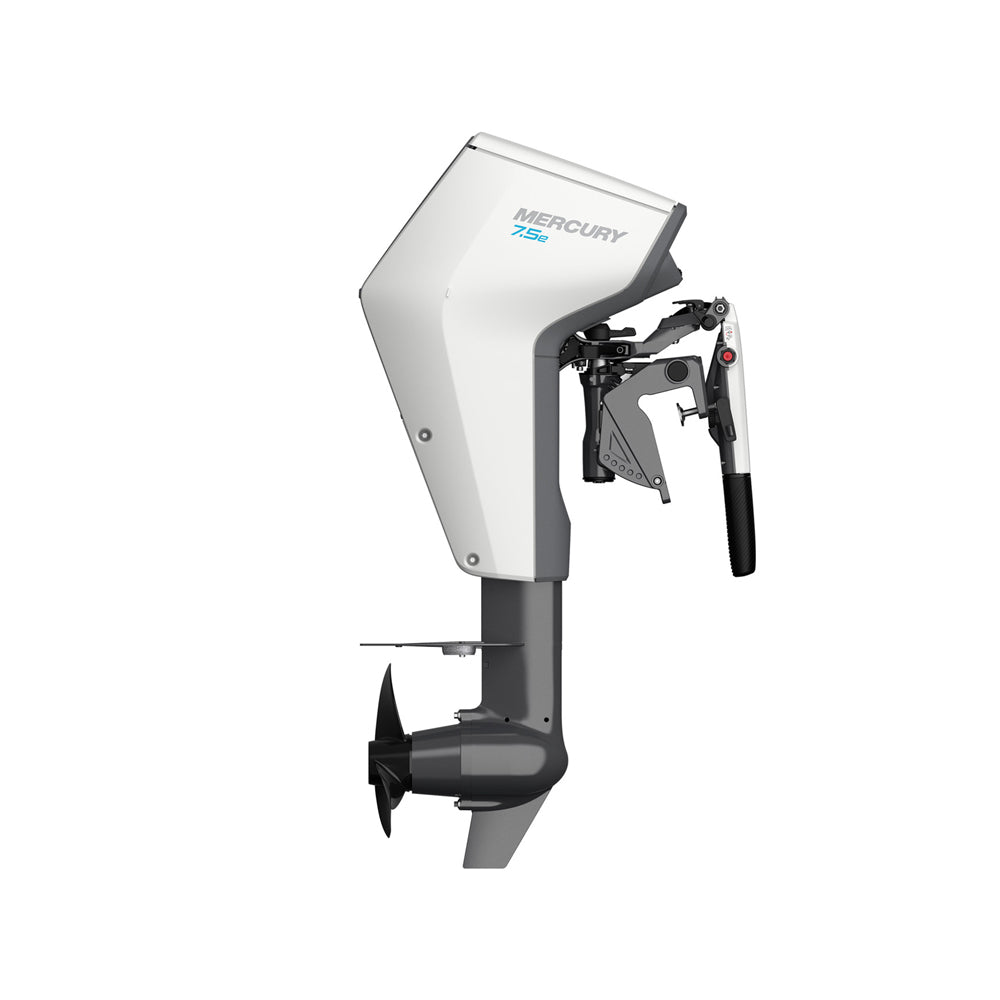

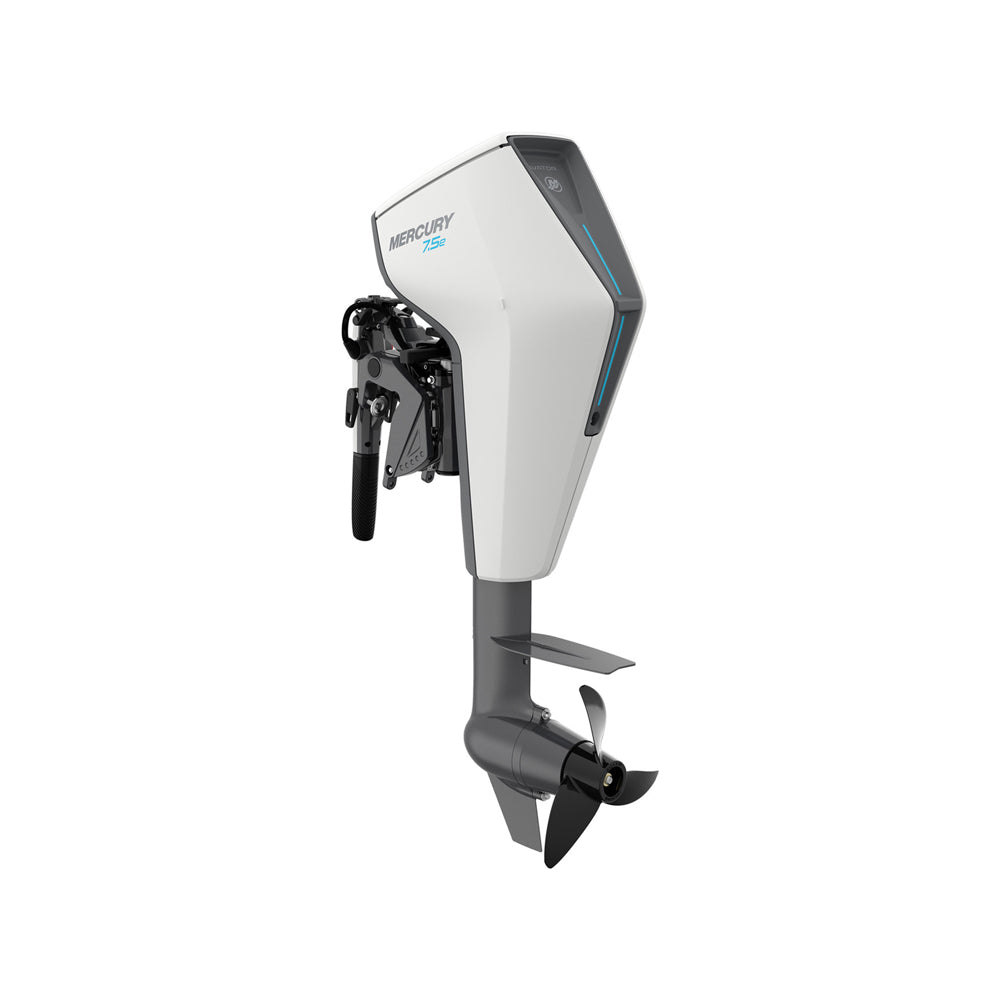

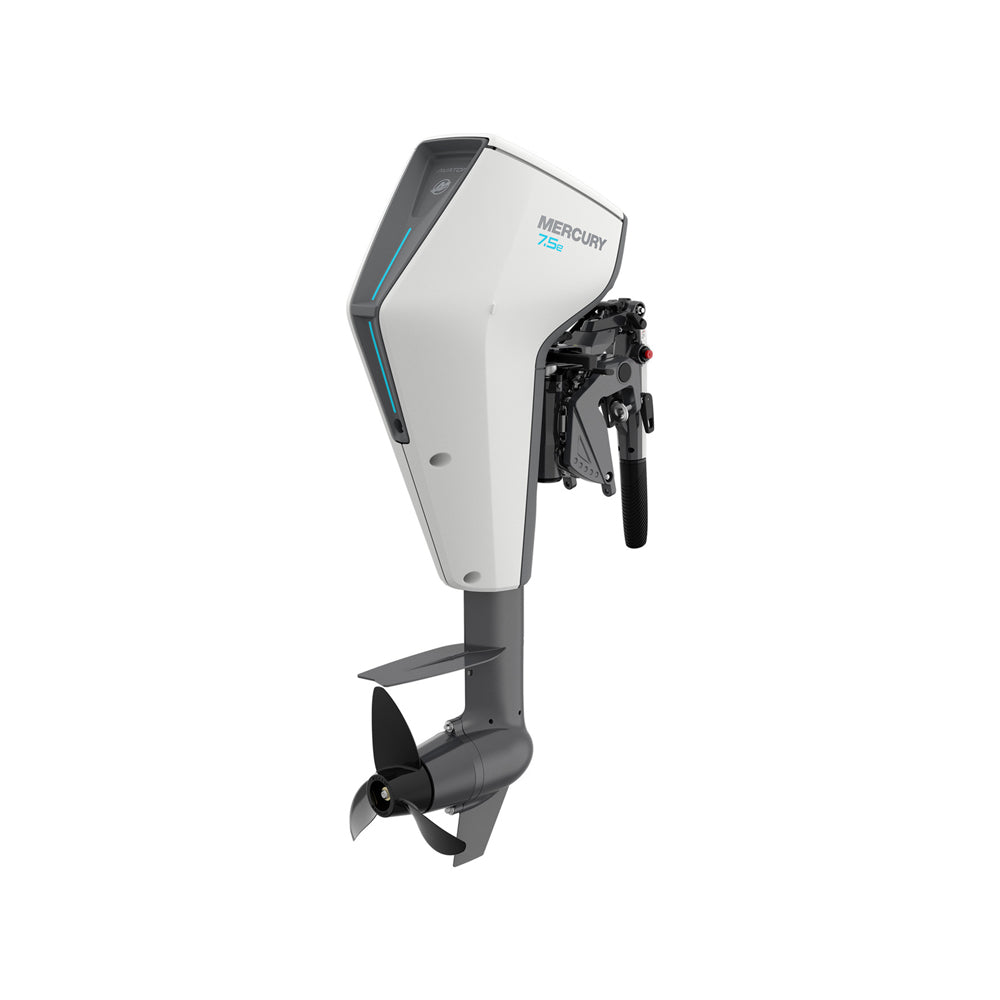

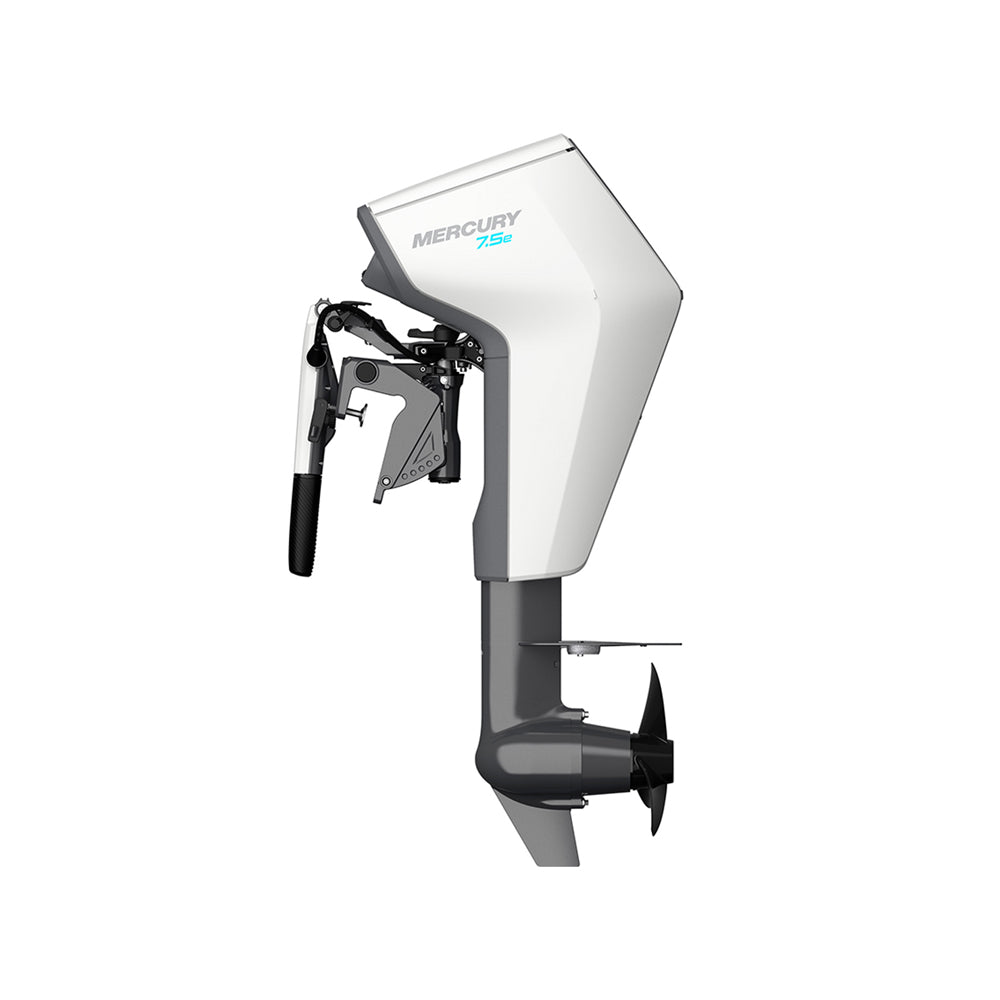

Mercury Avator 7.5ESH 15" Shaft Electric Tiller Outboard
Experience a new way to Go Boldly with Mercury® Avator™ electric propulsion systems. Calm, quiet, ordorless and smooth, an Avator outboard lets you fully immerse yourself in nature. Explore the water with confidence thanks to advanced lithium-ion batteries and an intelligent system that displays your state of charge and estimated range. With intuitive controls plus easy setup and operation, Avator outboards transform the boating experience.
Item #: 1001E991A
* Inquire Below for Details.
Adventure Effortlessly
Simplify your boating experience with the easy-to-setup, ultra-portable Avator 7.5e electric outboard engine.
43 lbs
Total Weight Excluding Battery (+17 lbs)
34 Miles
Maximum range of 19 hours or 34 miles at 25% throttle
3.5 hp
1kW motor, equivalent to 3.5 HP

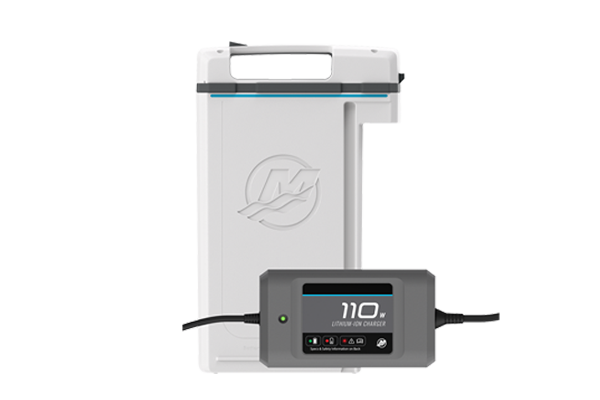

Safe, Smart Charging
Smart chargers constantly monitor voltage and current to deliver a safe, effective charge.
Transverse Flux Motor
Industry-first transverse flux motor technology generates high torque with little effort, maximizing battery life to extend your range while providing quick acceleration and efficient performance.

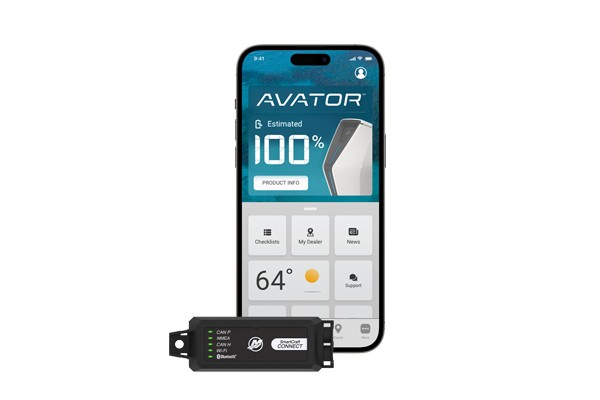

Smartcraft Connect App
Wirelessly connect with the app, unlocking additional features like a GPS map with visualized range estimates and more.

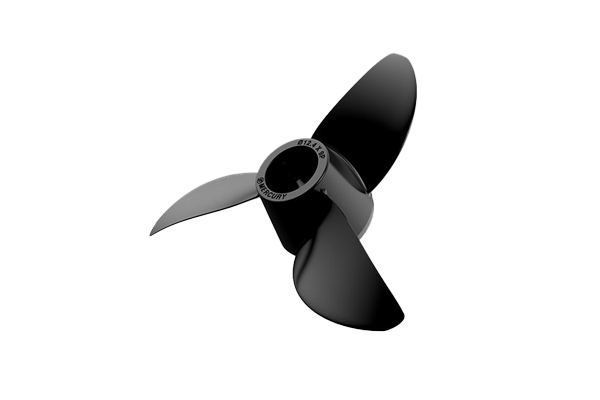

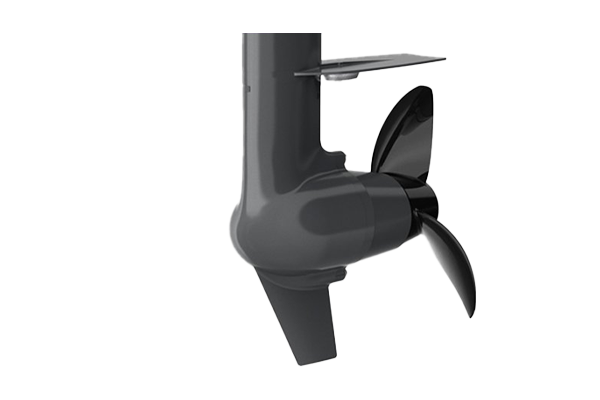

High-Efficiency Prop
The hydrodynamic lower unit and durable, ultra-efficient prop were made to move. They effortlessly carve through the water, maximizing runtime for maximum fun.

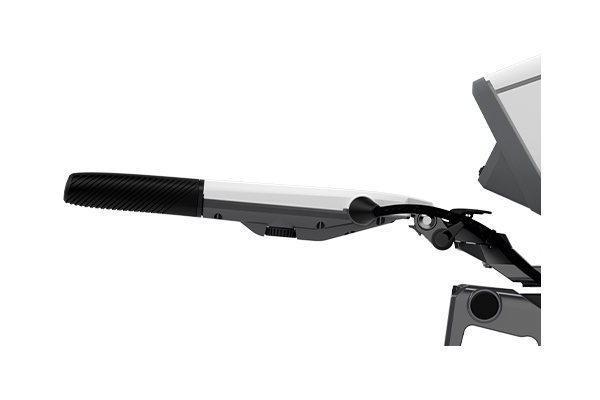

Adjustable Tiller Handle
Adjusts up, down, left or right for comfortable steering from any position or with either hand, and it folds down to become a convenient carrying handle.

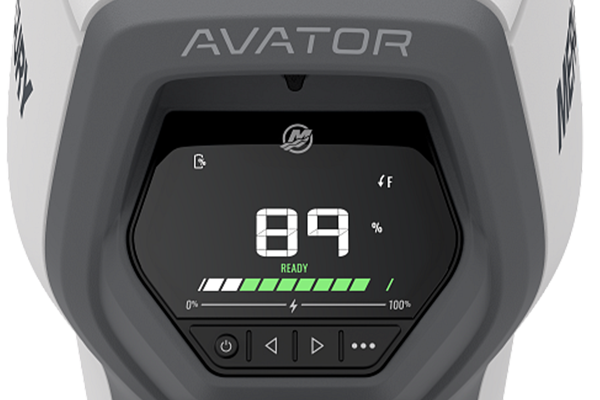

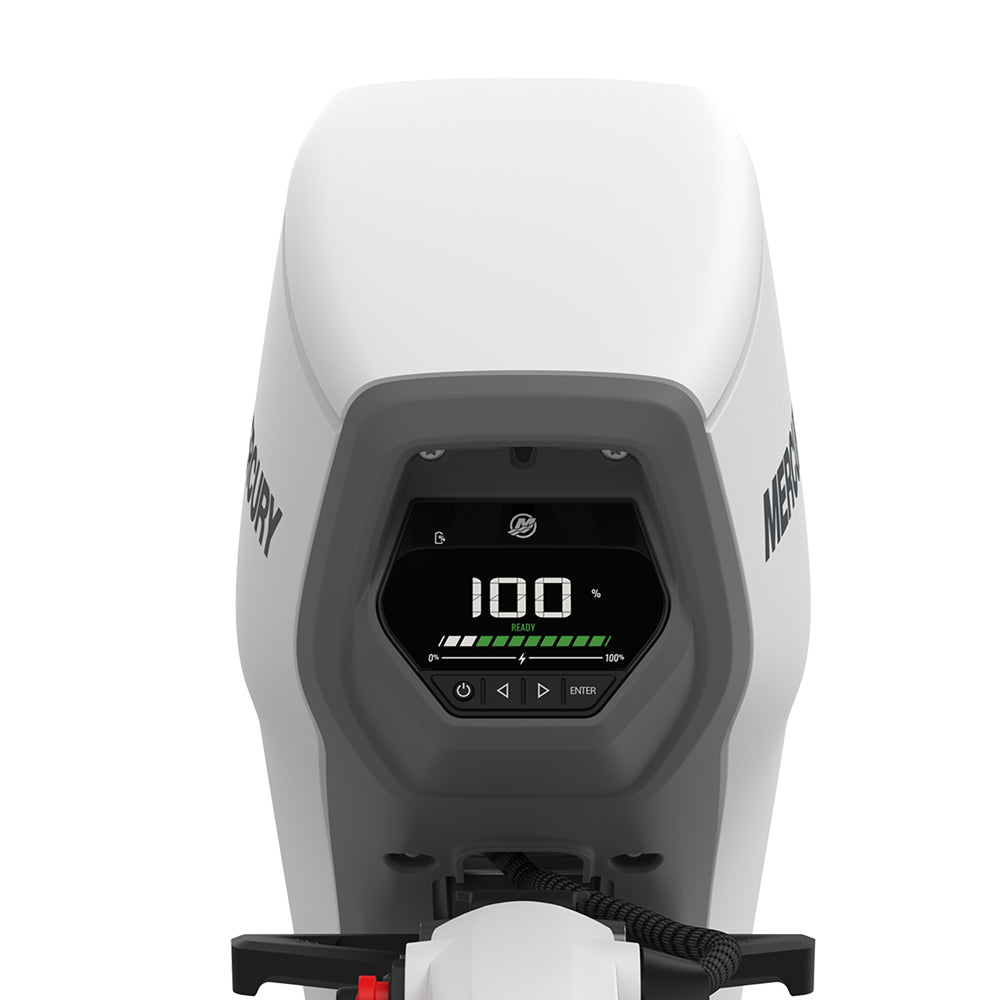

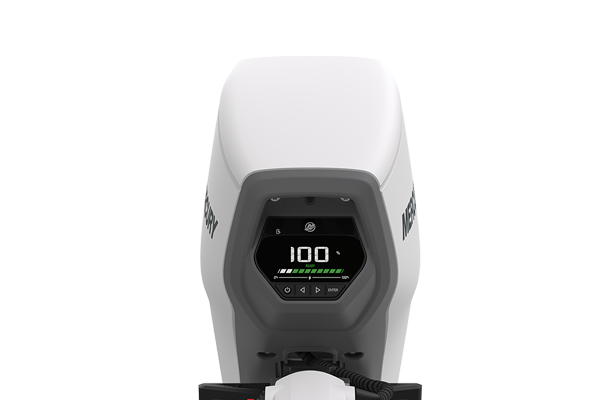

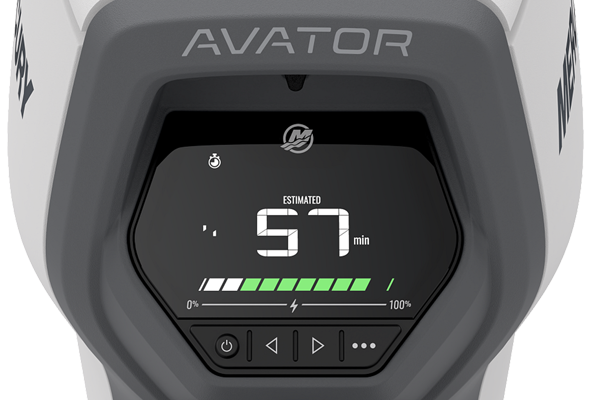

Intelligent Displays
Vivid full-color displays provide all the information you need to enjoy your adventures, including range estimates and an up-to-the-second battery life meter.

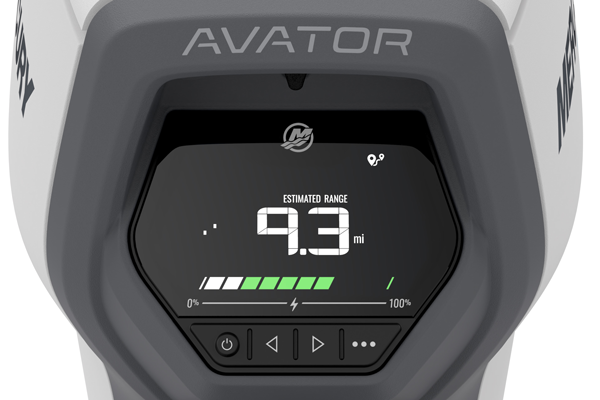

Read estimated miles remaining in real time based on current usage.
Read estimated minutes remaining in real time based on current usage.
Read percentage of battery remaining in real time based on current usage.

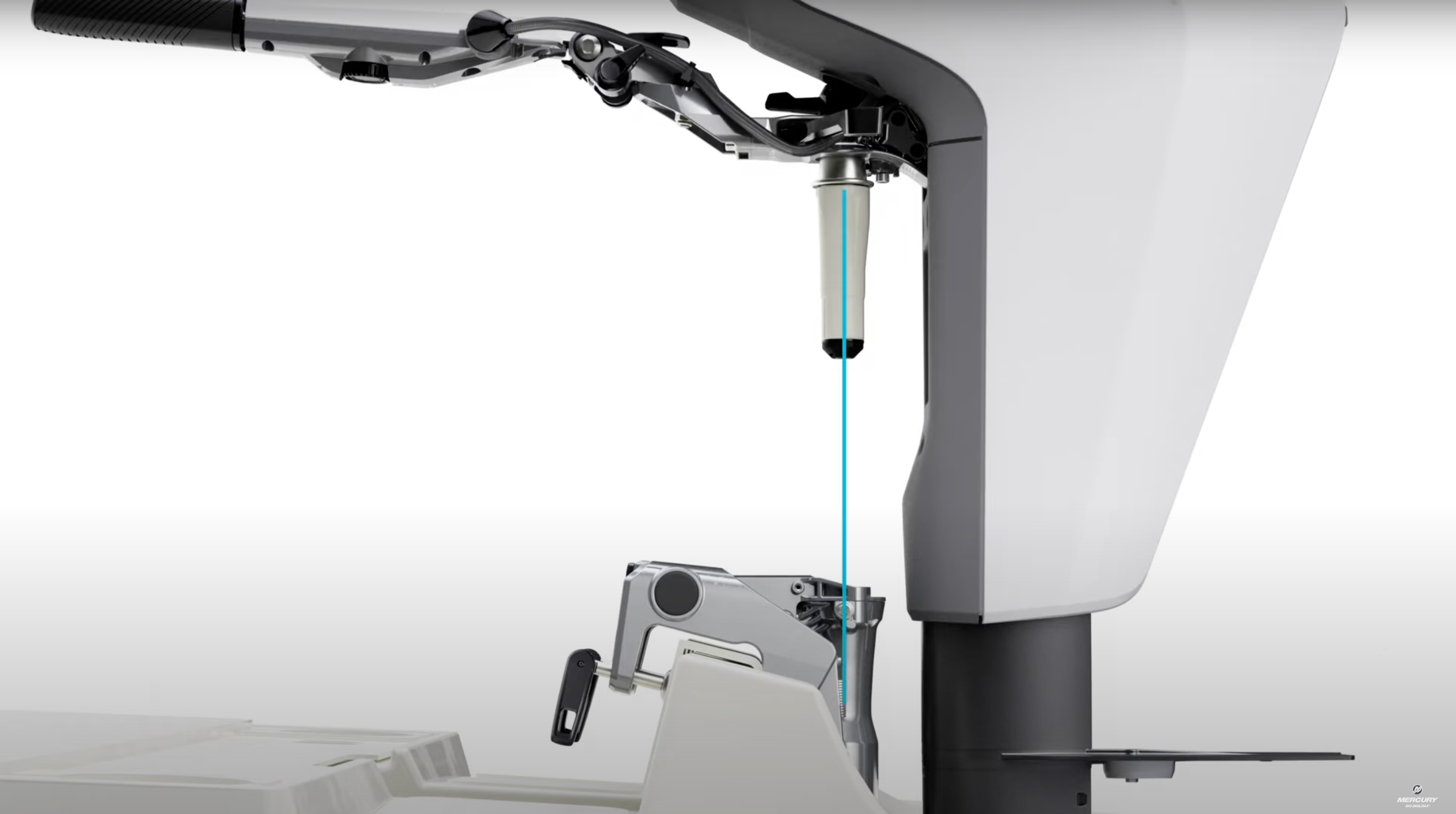

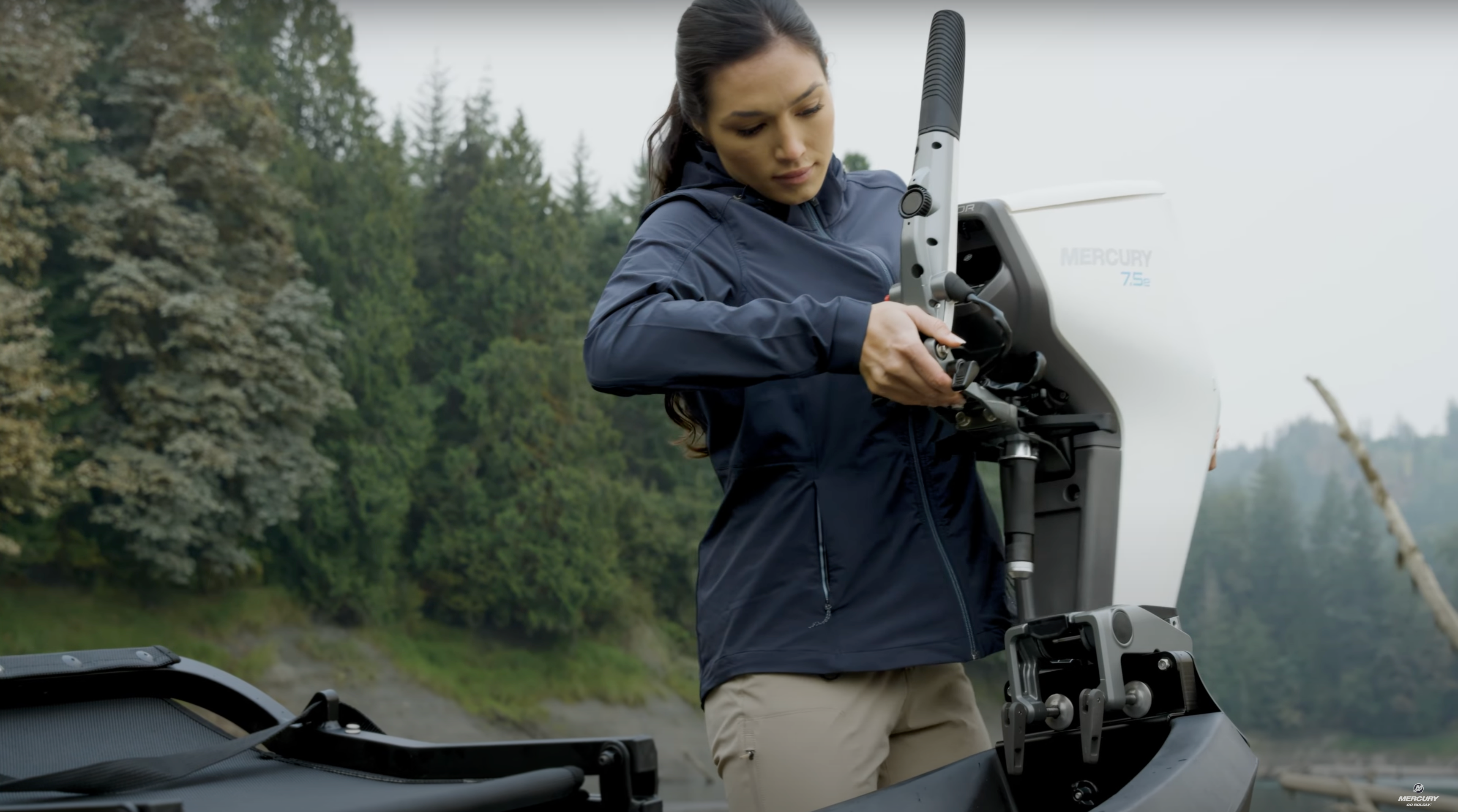

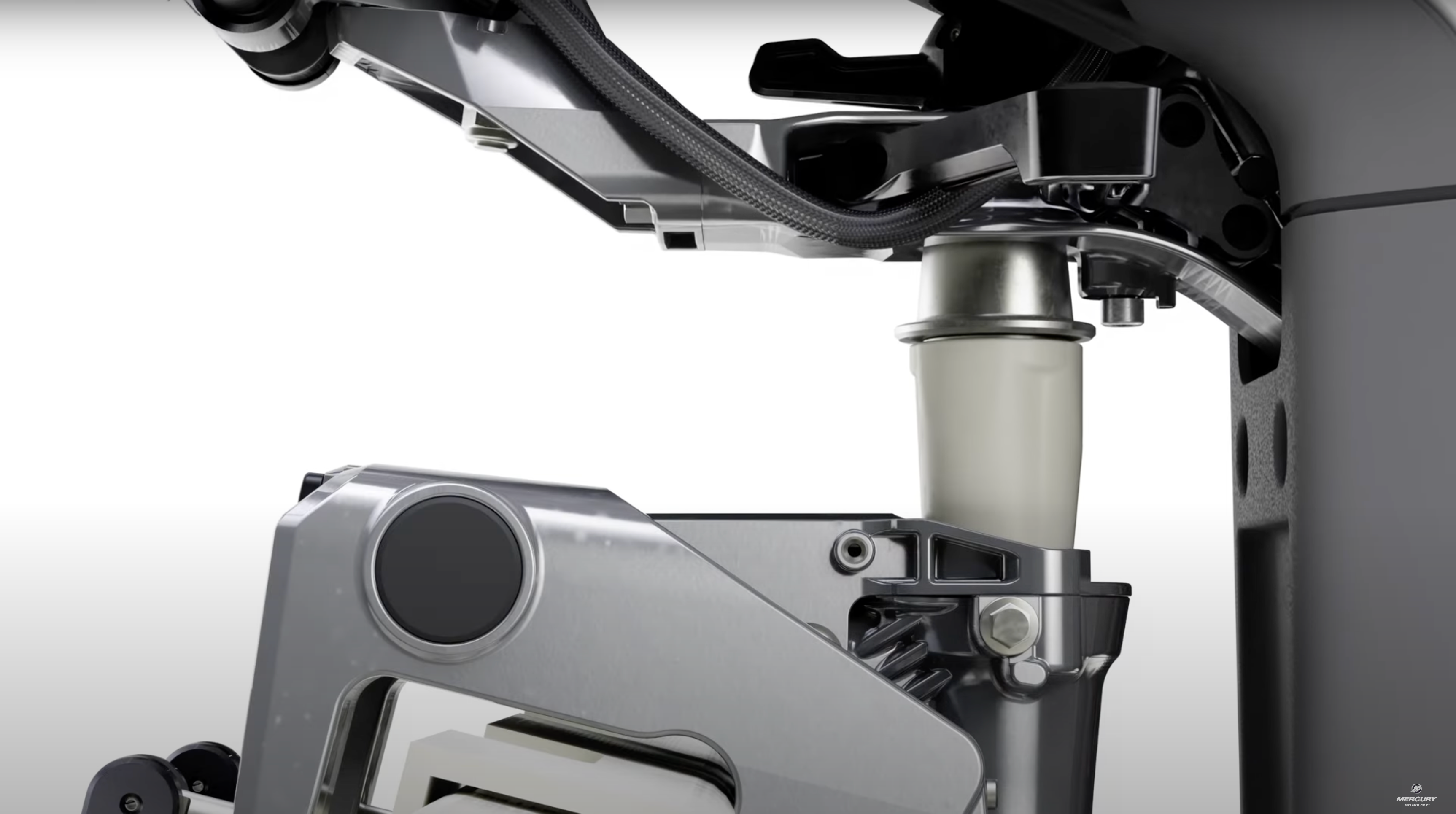

Quick release mounting system allows you to easily remove or install the outboard onto your boat in 3 steps.
Align probe with the quick-release receiver.
Set the outboard in place and give it a firm push to fully seat the probe into the receiver.
Gently lift the outboard to verify it is locked in place.
Quick release mounting system allows you to easily remove or install the outboard onto your boat in 3 steps.
Align probe with the quick-release receiver.
Set the outboard in place and give it a firm push to fully seat the probe into the receiver.
Gently lift the outboard to verify it is locked in place.
Watch to Learn More
52%
Quicker Acceleration
(0-4 mph; Seconds) Compared to Electric Outboard Competitor A
80%
Less Tiller Handle Vibration
Compared to a 3.5hp Four-Stroke Combustion Outboard

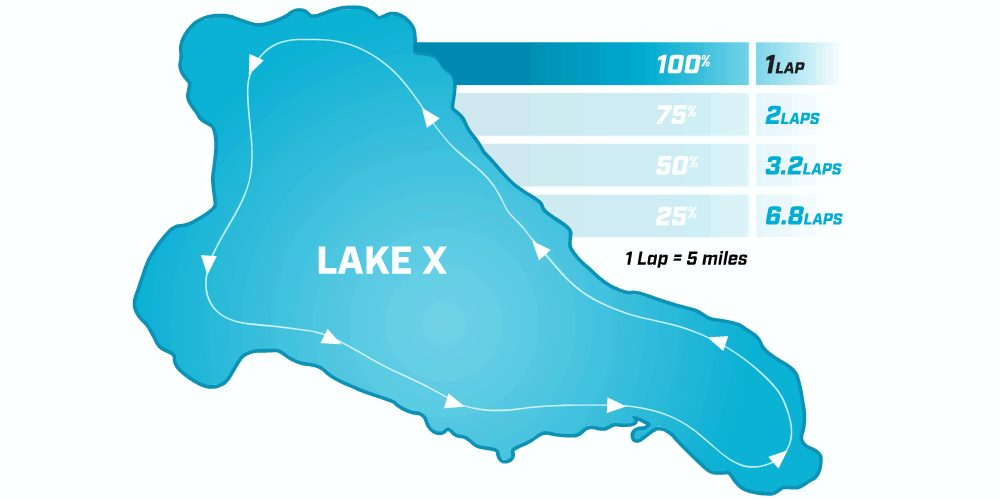

One trip around Mercury’s legendary Lake X test site in Florida is approximately 5 miles. Here’s how many laps you can make on one fully charged 1kWh battery
*Examples shown are based on Mercury internal testing. Actual results will vary based on boat, load, conditions and battery state of charge.
One trip around Mercury’s legendary Lake X test site in Florida is approximately 5 miles. Here’s how many laps you can make on one fully charged 1kWh battery
*Examples shown are based on Mercury internal testing. Actual results will vary based on boat, load, conditions and battery state of charge.
Mobile Integration
From one intuitive interface, you can plan your trips and track your battery level and range, while having access to the most complete set of performance data available for any electric outboard.

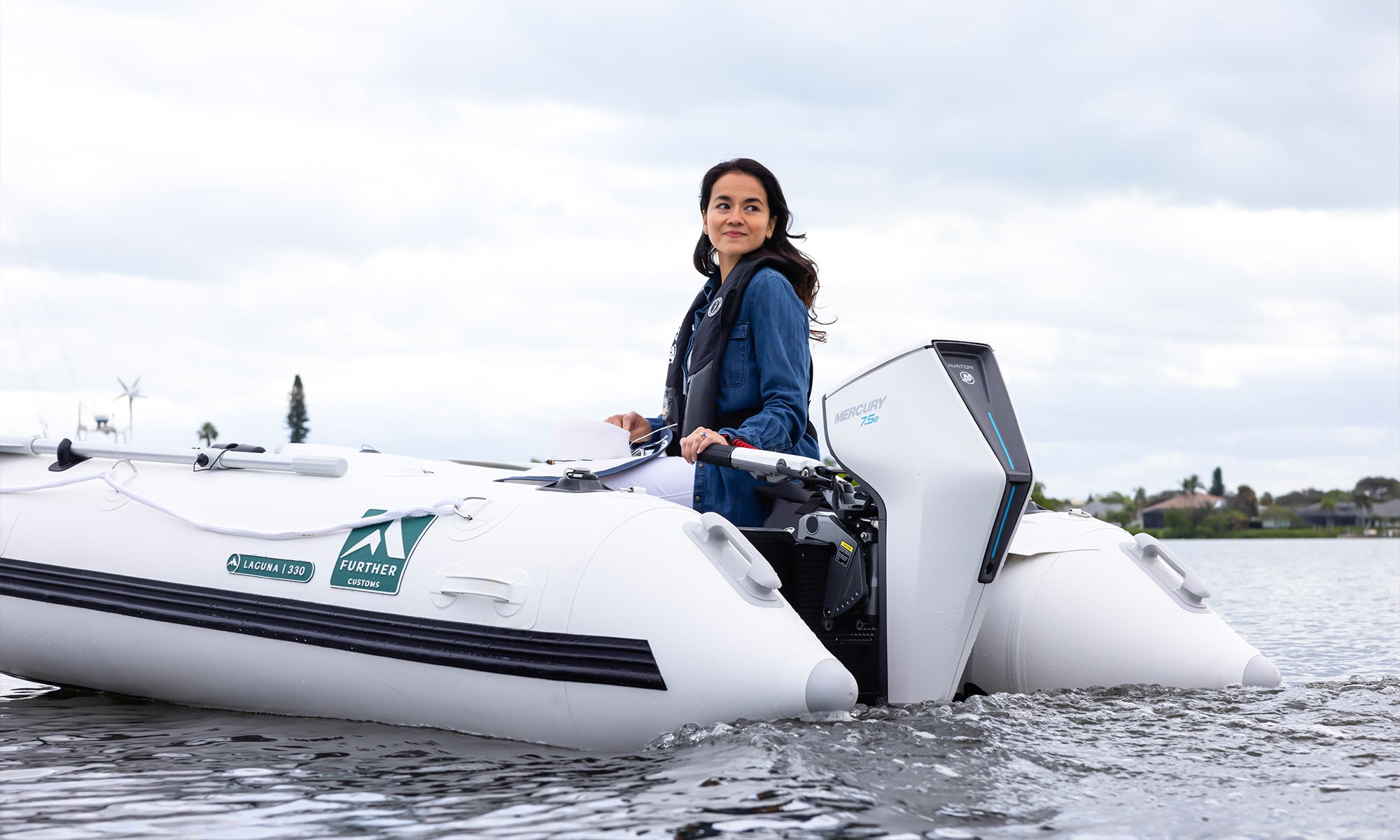

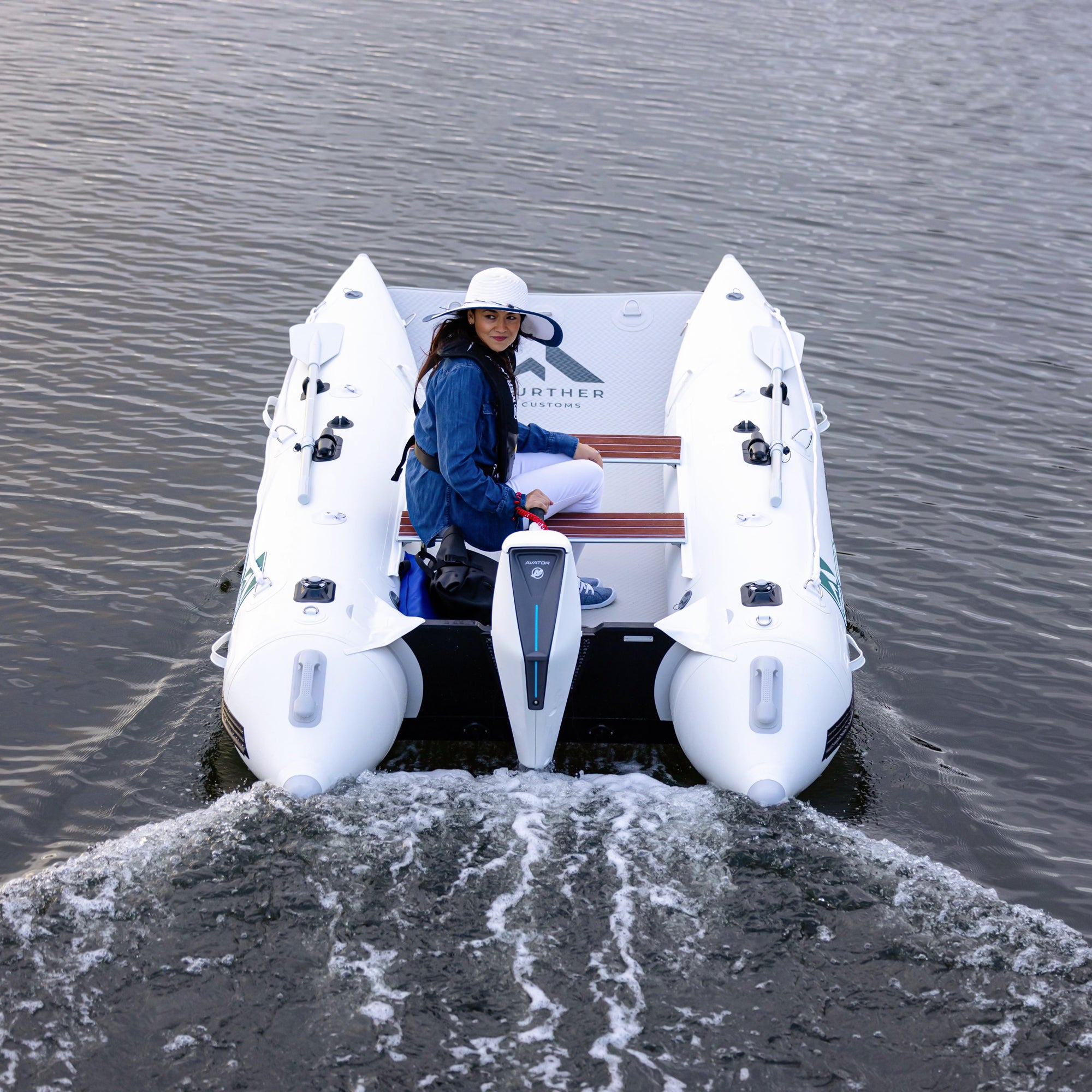

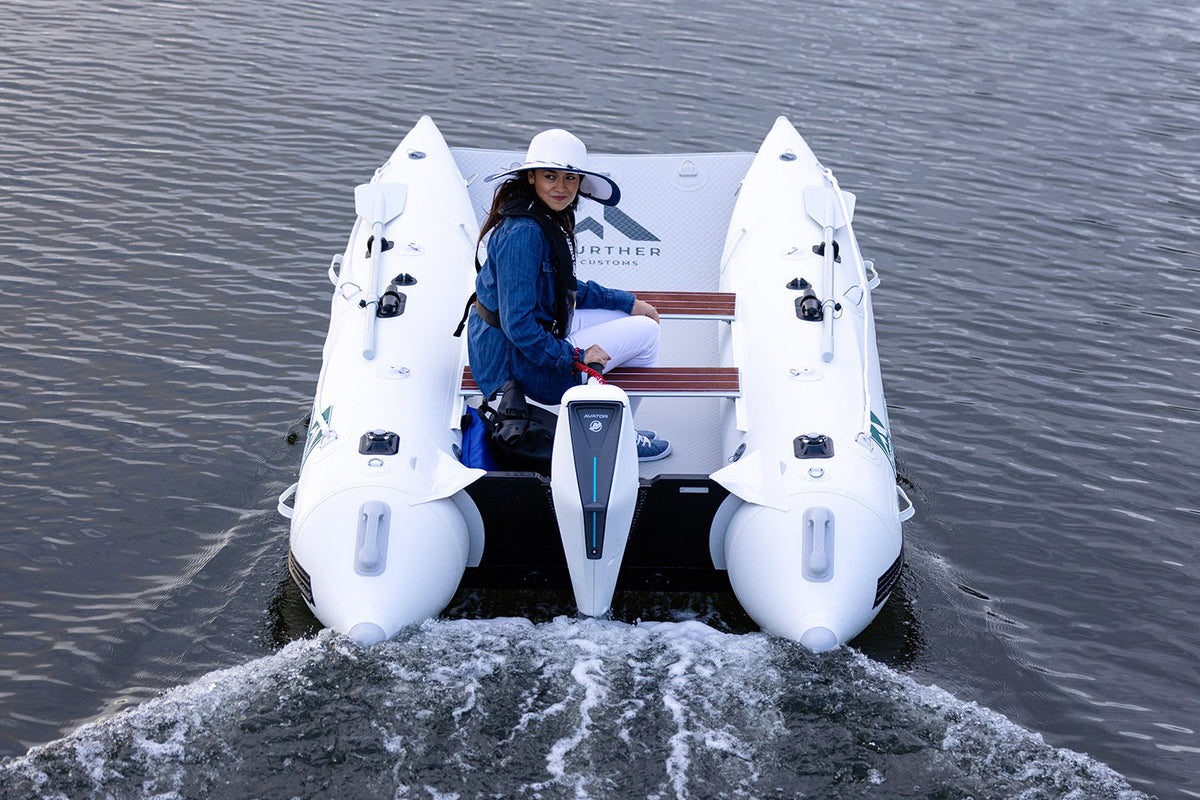

Laguna 330 x Avator 7.5e
Product Specifications
916W
750W
48V
Integrated 1kWh
Lithium Ion
IP67
110W
19.5kg (43lbs)
7.6kg (17lbs)
Tiller or Remote
12.7 x 7 Pitch
- 15" / 381 mm
- 20" / 508 mm
- 25" / 635 mm
Frequently Asked Questions
What are the benefits of electric over traditional gas outboard engines?
- Odorless - No exhaust fumes and zero direct emissions.
- Quiet - 4x quieter to operator than a 3.5hp four-stroke outboard at full throttle.
- Ease of Transportation - Generally lighter weight and better balance for easy handling & mounting.
- Convenient Storage - Electric outboards do not need to be flushed with fresh water or have the gasoline emptied prior to storage like traditional gas engines.
- Low Maintenance - Traditional gas outboards require regularly scheduled servicing.
- No Break-In Period - Electric outboards are ready to perform 100% following their 1st complete charge.

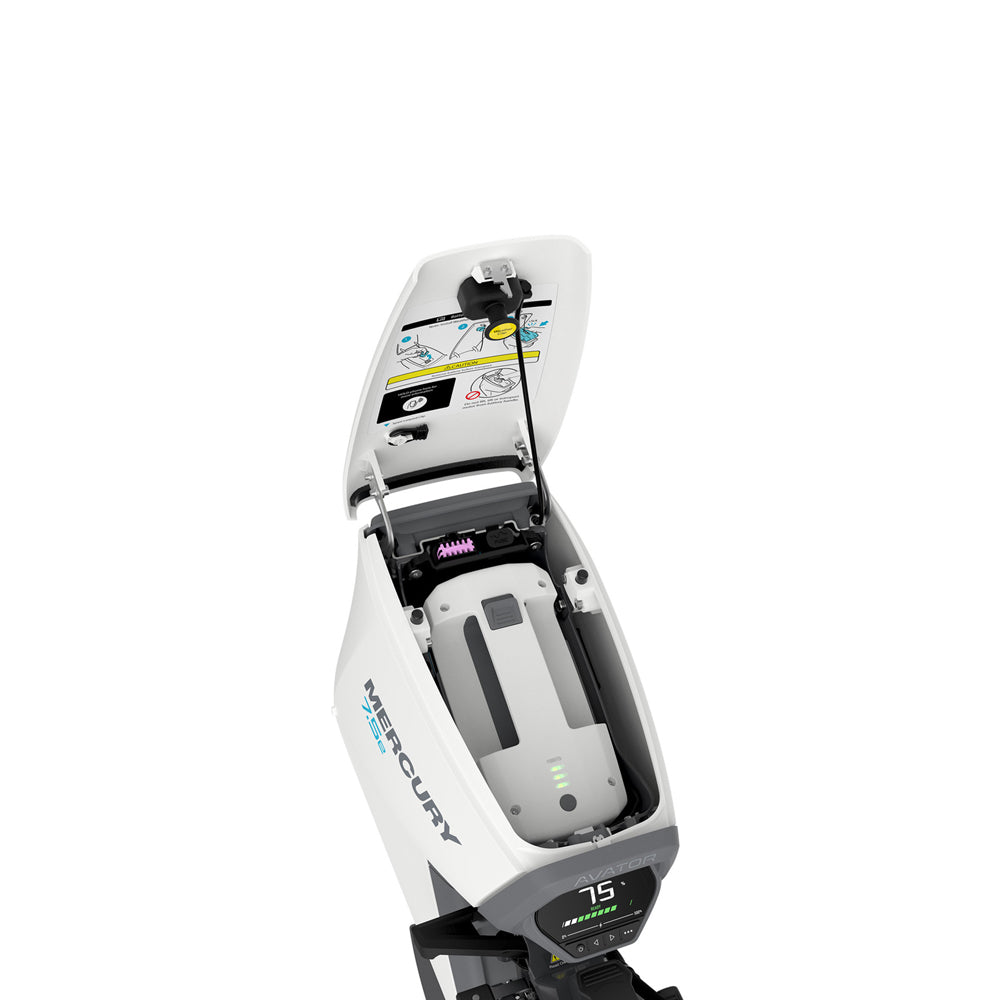

Is the engine battery included?
Our Avator 7.5ESH offering includes the shaft & battery--they are sold & packaged together.
What is in included with the Avator 7.5ESH?
- Engine
- 1 kWh Battery
- 1 110 Charger
- Propeller
What is the Mercury backed warranty?
Mercury Avator holds a three-year corrosion warranty in addition to the three-year limited warranty, which also extends to the controls and rigging. Avator batteries and charging accessories come with two years of limited factory warranty.
How are the engine and battery shipped?
The Avator is shipped by either UPS Ground or LTL freight and delivered to the nearest Mercury Dealer for the customer to pickup at their convenience. This ensures that the engine packages are delivered safely without risk of damage, theft or loss in transit. Furthermore, the assigned Mercury Dealer will certify proper warranty validation on behalf the customer. Following the placing of an order, a member of our customer care team will reach out to provide white glove service. Namely, we confirm our customer's preferred / nearest pickup location. Additionally, if a customer is traveling we can arrange for their engine and catamaran to be delivered to their vacation destination or a dealer located along their travel path.
How to store the Avator battery when not in use?
The battery should be stored in a dry & shaded environment and in moderate temperatures ideally between 5°-15°C / 41°F - 59°F. During storage we recommend that the battery maintain a minimum charge of 60% or more, and be charged every 3 months.
Is the Avator safe for both fresh and saltwater use?
Yes, the Avator is built with high-quality corrosive resistant materials and designed for extensive use in both fresh & saltwater.
How long does it take to fully charge Avator 7.5 battery?
The Avator 7.5e outboard is compatible with 110 and 230 watt chargers. The included 110 watt model can recharge a fully depleted 1 kWh battery in approximately 9 hours. When faster charge time is needed the upgraded 230 watt charger, sold separately, can complete a full charge in around 4 hours.
What is the maximum range of the Avator?
At 25% throttle the Avator can operate for approximately 19 hours and travel a distance of 34 miles (55 km).
How does the Avator compare to a combustion engine?
The Avator performs with speed and acceleration figures most similar to the Mercury 3.5hp FourStroke outboard.
